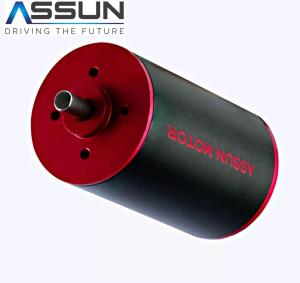

32mm Length Brushless Coreless DC Motor 20000rpm 18V 24V 12V
18V,24V,12V DC Coreless Motor 32mm Length. 16mm diameter 15000-20000rpm
Product introduction:
1. Torque constant 9.96 mN.m/A. Speed constant 958rpm/V,18V. 24V. 12V.
2. No load speed ±12%: 17253rpm. No load current Max150%: 49mA .Maximum power output 9.2W. Terminal resistance ±12%: 8.78Ω.
3. It's DC Brushless Motor. 16mmdiameter.32mm Length .
4. Weight :32.6 g.Ambient temperatue range : -30 to 65 ℃.
5. Brushless motors can install the corresponding with planetarty gearbox and encoder
Product Details:
| Motor Model | AM-BL-1632AN-1817 | Unit |
| Nominal voltage | 18 | V |
| No load speed ±12% | 17253 | rpm |
| No load current Max150% | 49 | mA |
| Max cont.torque | 3.1 | mN.m |
| Rated Speed | 14233 | rpm |
| Rated Current | 360 | mA |
| Rated Power | 4.61 | W |
| Starting current | 2050 | mA |
| Stall Torque | 20 | mN.m |
| Maximum power output | 9.2 | W |
| Maximum Efficiency | 71 | % |
| Terminal resistance ±12% | 8.78 | Ω |
| Inductance ( 1KHz ) | 0 | mH |
| Mechanical time constant | 2.65 | ms |
| Moment of inertia | 0.3 | gcm² |
| Torque constant | 9.96 | mN.m / A |
| Speed constant | 958 | rpm / V |
| Speed / torque gradient | 844.7 | rpm / mN.m |
| Weight | 32.6 | g |
Service idea :
We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
