Incremental Optical Rotary Encoder 11g Weight 16mm Diameter 20 Bit
Encoder,Incremental Encoder, Optical Encoder
ASSUN Encoders include incremental and absolute types.For incremental controller, there are modeles of electromagnetic and optical,and both offers wide range of resolution choices.For absolute encoder, customer can choose for single or multi turns and also different resolutions..
High precision(resolution) and high reliability encoders by Assun are perfect for precision DC drive feedback and play an important role in the precision control system.
AM-EN1612T103 Series:
1. AM-EN1612T103-360 . 2. AM-EN1612T103-720. 3. AM-EN1612T03-1440.
Product introduction:
Incremental Encoder, Optical Encoder, Encoder Series products diameter 16mm.Thickness: 12mm.
PPR / TURN : 360 / 720 / 1440. Max Channels : 3
Max Working Freq.(KHz) : 55~220 .
Weight : 11.0 g
Product Detail:
| Parameters/ Models | AM-EN1612T103-360 | AM-EN1612T103-720 | AM-EN1612T103-1440 |
| Diameter | 16 | 16 | 16 |
| PPR / TURN | 360 | 720 | 1440 |
| Max Channels | 3 | 3 | 3 |
| Max Working Freq.(KHz) | 55~220 | 55~220 | 55~220 |
| Direction Signal | no | no | no |
| Drive(Differential Output) | yes | yes | yes |
Product Information :
| Technical Parameter | Suitable for motor size | Pin definition |
| Power Vcc | 5V±5% | Suitable for shaft diameter | 2.0 / 3.0 | 1. NC | 2. VCC |
| Vcc=5.0V Signal | ISL32179 | Suitable for shaft length | 5.2~5.5 | 3. GND | 4.NC |
| Operating Temperature | -25-85℃ | Suitable for boss diameter | 6.45~6.5 | 5.A- | 6. A+ |
| Inertia(max) | 0.06 g.cm² | Suitable for boss thickness | Maximum 1.0 | 7.B- | 8. B+ |
| Output Current. each channel | 20mA (max) | Code wheel spacing | 0.8~1.1 | 9. Z- | 10.Z+ |

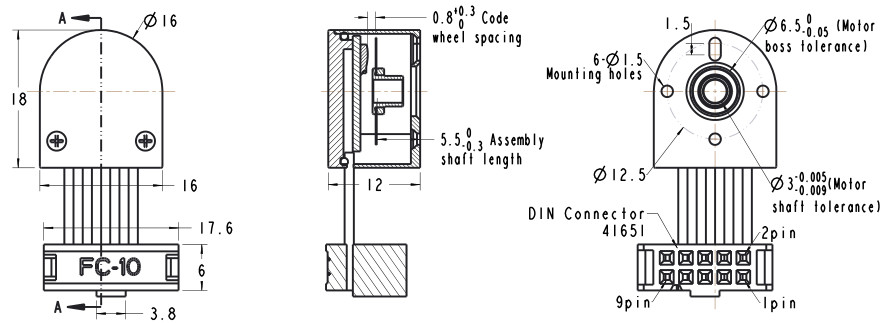

| Weight | 11.0g | Other fixed size | Drawing | |
Product Combiniation Scheme :
Recommended Gearbox:
Planetary gearbox: AM-16GP. AM-20GP. AM-24GP
Recommended Motor :
Brushless Motor:AM-BL16** . AM-BL20**
.
Remarks: Clients can choose gearbox and motor to match with this encoder.
Application:
Application of Assun Encoder in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose motor.etc.
