42.6 W Brushless Coreless Motor 18v 28mm Diameter 21687mA Starting Current

Name: 426 W Brushless Coreless Motor 18v 28mm Diameter 21687mA Starting Current
Brand: ASSUN
Price: 1 USD

Brand Name : ASSUN

Model Number : AM-BL2845AE-1813

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1-10pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300000/Month

Delivery Time : 5-15 work days

Packaging Details : Cartonbox

Nominal voltage : 18V

No load speed ±12% : 12520 rpm

No load current Max *150% : 170 mA

Max cont.torque : 37.2 mN.m

Rated Speed : 10913 rpm

Rated current : 2900mA

Rated Power : 42.6 W

Starting current : 21687 mA

Stall Torque : 293 mN.m

Maximum Efficiency : 83%

Terminal resistance ±12% : 0.83Ω

Weight : 139.1g

Contact Now

Product Description:

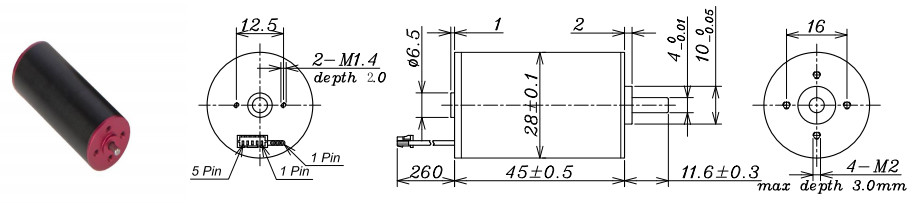

High temperature DC Brushless Motor,9000-15000rpm,12V 24V 18V,28diameter,45mm Length

Product introduction:

1. High temperature DC Brushless Motor. 18V / 24V / 12V, 9000-15000rpm,45mm Length,28mm diameter

2. No load speed ±12%: 12520rpm. No load current Max150%: 170mA .Maximum power output 96.1W. Terminal resistance ±12%: 0.83Ω.

3. Torque constant 13.6mN.m/A. Speed constant 701rpm/V, Speed / torque gradient 42.7rpm/ V

4. High temp DC Coreless motors can install the corresponding with planetarty gearbox and encoder

5. Weight :139.1g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

Product Details:

Motor Model	AM-BL-2845AE-1813	Unit
Nominal voltage	18	V
No load speed ±12%	12520	rpm
No load current Max150%	170	mA
Max cont.torque	37.2	mN.m
Rated Speed	10913	rpm
Rated Current	2900	mA
Rated Power	42.6	W
Starting current	21687	mA
Stall Torque	293	mN.m
Maximum power output	96.1	W
Maximum Efficiency	83	%
Terminal resistance ±12%	0.83	Ω
Inductance ( 1KHz )	0.126	mH
Mechanical time constant	2.8	ms
Moment of inertia	6.19	gcm²
Torque constant	13.6	mN.m / A
Speed constant	701	rpm / V
Speed / torque gradient	42.7	rpm / mN.m
Weight	139.1	g

42.6 W Brushless Coreless Motor 18v 28mm Diameter 21687mA Starting Current
